3L tow two bottle blows

    Hello,friend.We are Taizhou Huangyan Tai Xiang Plastics Machinery Co., Ltd,specializing in the production of semi-automatic,fully automatic bottle blowing machine,suitable for a variety of material plastic,beverage bottles,mineral water bottles,cosmetics bottles, oil bottles,space cups,medicine bottles,edible oil bottles,bulk wine bottles,etc.

   Various packing containers such as water barrel,wide-mouthed bottle, plastic pop can, beverage bottle and so on.The bottle shape of the opposite sex needs to be customized for processing.

And the special high quality and low price accessories,solenoid valve,cylinder,lamp pipe,gas source treatment parts,pipe fittings, oven fittings,etc.Special specifications cylinder,lamp tube can be made to sample.All kinds of bottle moulds,bottle moulds,bottle caps and so on can be customized.Welcome the new and old customers' negotiations.We look forward  to cooperating with you.

TX-3L 2cavity*2 technical parameters

Category

Item

Unit

TX2C3L

Finished product

material

/

PET

volume

L

3L

theoretical output

PCS/h

1500-2200

maximum height

MM

350

the largest diameter

MM

115

Template size

the largest acreage of template

MM

360*410

maximum  thickness  of mold

MM

220

minimum  thickness  of mold

MM

90

clamping force

T

8T

mold opening stroke

MM

155


Auxiliary equipment

air compressor

15KW

≥3.0/3.0

air freeze dryer

3.0 M pa

≥3.0/3.0

air precision filter

3.0 M pa

≥3.0/3.0

Electric power of main engine

power

KW

15

voltage / frequency(three - phase)

V/HZ

380/50-60

working pressure

M pa

0.8-1.0

blowing pressure

M pa

2.0-3.0

Size

size of main engine

MM

1700*640*1600

heater size

MM

1720*585*1360

Weight

weight of main engine

KG

550*2

heater weight

KG

260

Note: as the company's equipment is constantly updated, the specific parameters shall be subject to the equipment!

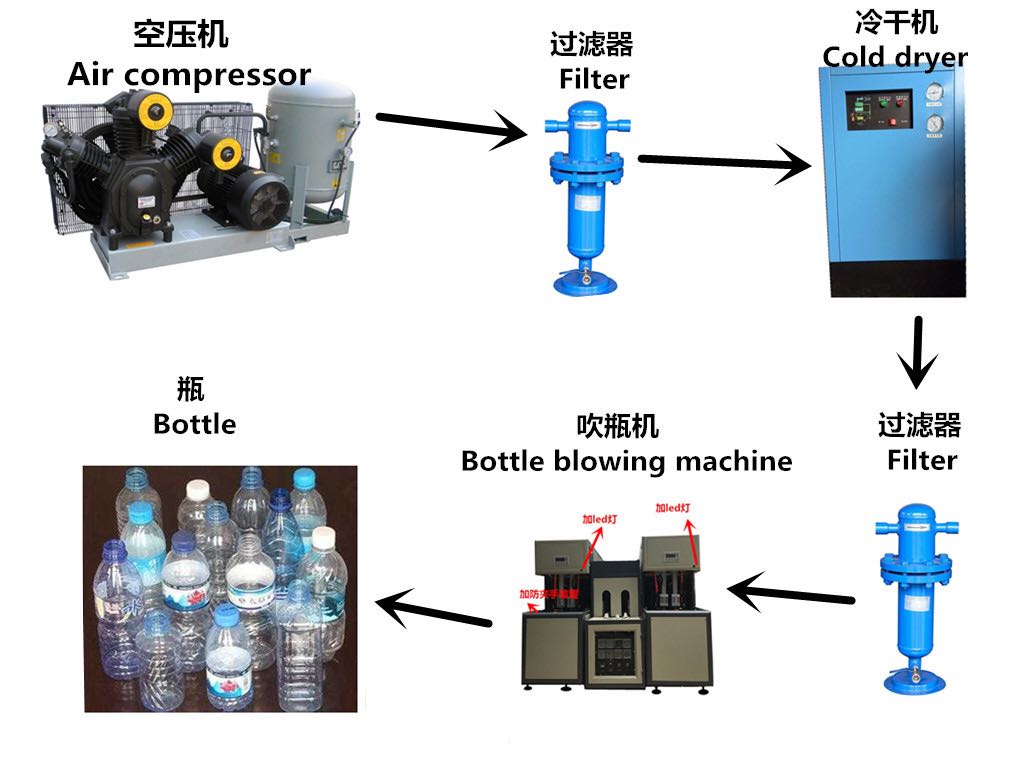

Process of blowing bottle
